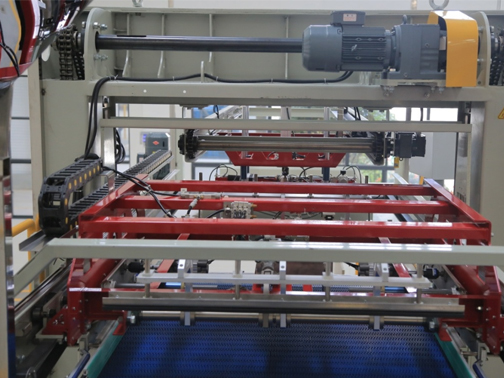

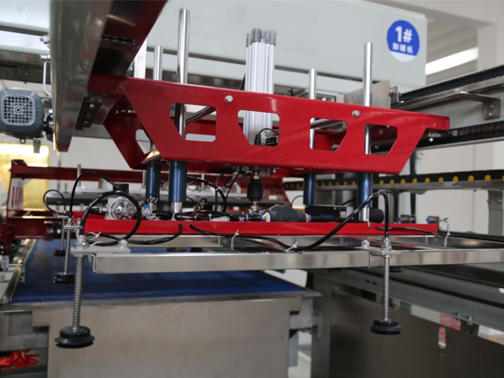

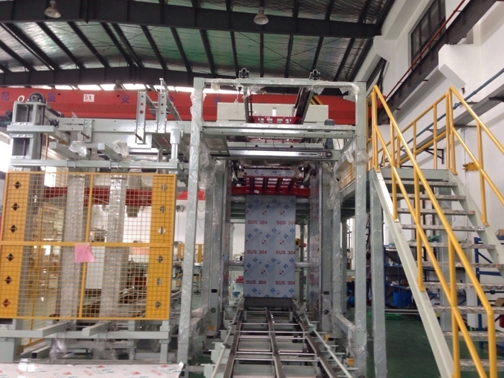

Depalletizers

Equipment description:

This equipment is mainly used in the food and beverage industry, chemical industry, for loading or take out all kinds of bottles, cans from the uni-pak. Depalletizers automatic operation is divided into automatic entering box, rotating box, row, form a pile, move the pile, lift the pile, enter the bracket, drop the pile, out of the stack and other steps.



Equipment composition :

This machine is composed of full stack input device, lifting device, integral pushing can device, cardboard suction device, empty pallet board collecting device, empty can conveying belt, manual platform device, safety device and automatic control device etc..











Technical parameter Equipment characteristics



Equipment model



Dfl-XD800

Dfl-XD400

 Equipment size



L13000*W6700*H5000

L11500*W6700*H5000

Working speed



850G/min

850G/min

Automatic paper-out



/

Pallet stacking



10 layers

10 layers

Total power/voltage



380V/10kw

380V/10kw

Stack size





L1400*W1100*H2800

L1400*W1100*H2800

Equipment total weight



10100KG

10000KG







l Replacing manual arranging can and traditional empty can unloading machine, save a lot of labor and improve production capacity

l Whole machine PLC control system, Full automatic operation, adapt to various types of stacks and bottles, easy to adjust.

l SIEMENS touch screen, flexible interface design, quick setting parameters, truly realize Man-machine exchange

l Pallet lifting platform self-lock lifting, Pallet stacker by cylinder lifting, work stable

l Pushing can methods choose continuous action or single cycle action, high operation adaptability

l Unloading empty can operation apply to various size of tin cans and aluminum cans, glass bottles
