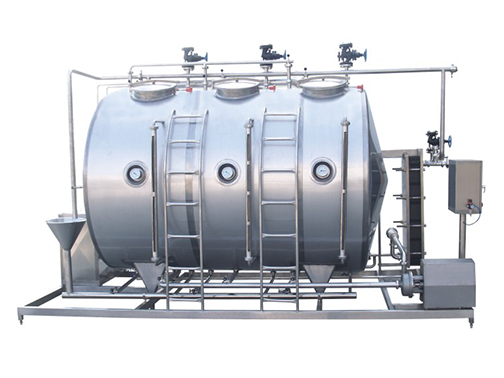

Small Integrated CIP System

This system can perform the acid cleaning, alkali cleaning and hot water cleaning separately. And also can set up special full-auto cleaning program according to client request;Itcan clean all the equipment efficiently, and also can control microorganism growing; Meanwhile, we can also makesemi-auto and full-auto control system according to your requirements.



Application Fields:

This CIP system is widely used in all food, beverage and pharmaceutical workshop, especially used for dairy product workshop.

Equipment characteristics Technical parameters

1. Small size, easy and flexible operation;

2. Energy saving clean liquid, steam and water, thus decrease production cost;

3. Increasing the machine main parts working life;

Specification

LTCIP-0.5X3

LTCIP-0.8X3

LTCIP-1X3

Outer size: L * W * H

3.2*1.4*1.6

5*1.8*2

5.5*1.8*2.1

Equipment GW

≈550kg

≈650kg

≈800kg

Basic manually technical parameter

 Inner shell:SUS304, δ3mm,outer cladding:δ1.5mm,PU insulated, coil pipe heating, single circuit, whole line bracket material: SUS304; manual control,

flow rate: 10m³/h, pump lift:32m,power:3KW;Operation platform, Stainless Steel electrical control cabinet.
